Single Channel HV Modules

HV3 series — off-the-shelf DC/DC converters from ±150 V to ±6000 V for space and high reliability applications.

Detectors supplied & application fields

Our HV modules to date have been adopted to supply:

  • Phototubes
  • Avalanche Photo Diodes — APD
  • Silicon PhotoMultiplier — SiPM
  • Silicon Detectors

for the following applications:

  • High Energy Physics
  • Astrophysics
  • Neutrino Physics
  • Dark Matter Investigation
  • Nuclear Physics
  • Material Science
  • Medical Applications
  • Homeland Security
  • Military Applications
  • Industrial Applications

To increase confidence in the utilised components and to be able to reduce delivery times due to a limited number of stock items but in large quantities, the HV DC/DC converters family shares most of the active components. Those components have been successfully tested for Total Dose up to 30 Krad.

Low Power Modules — 150 V to 3500 V

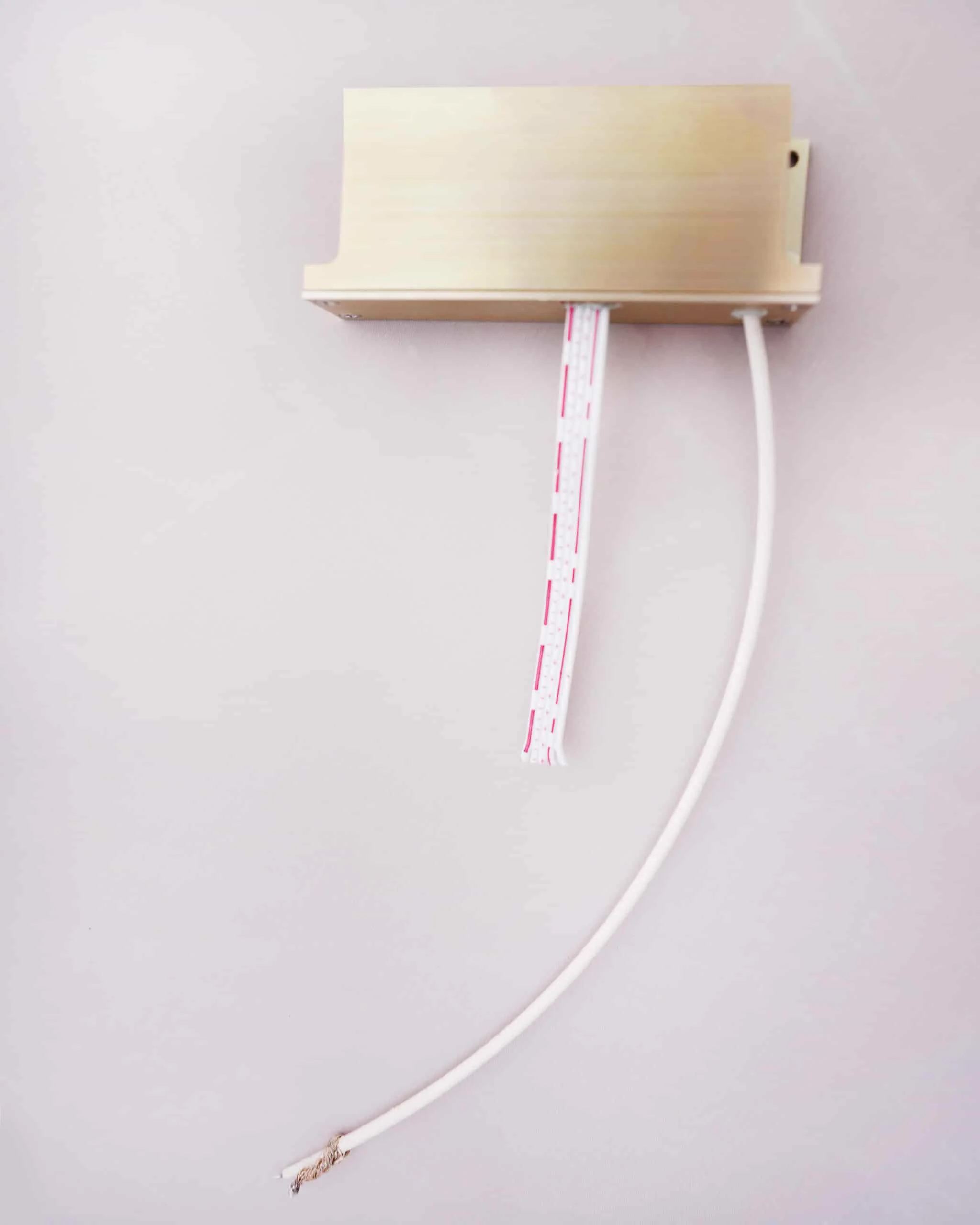

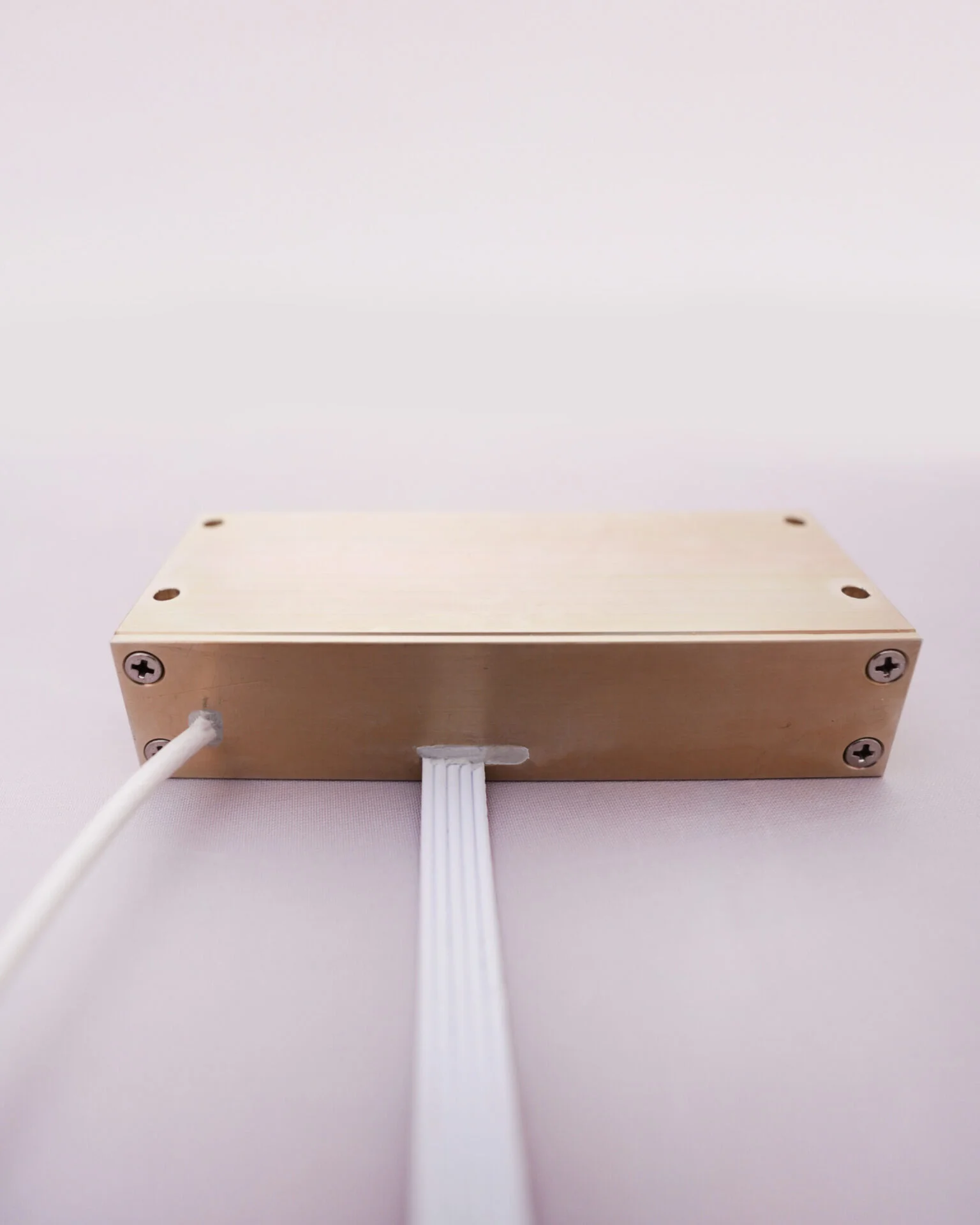

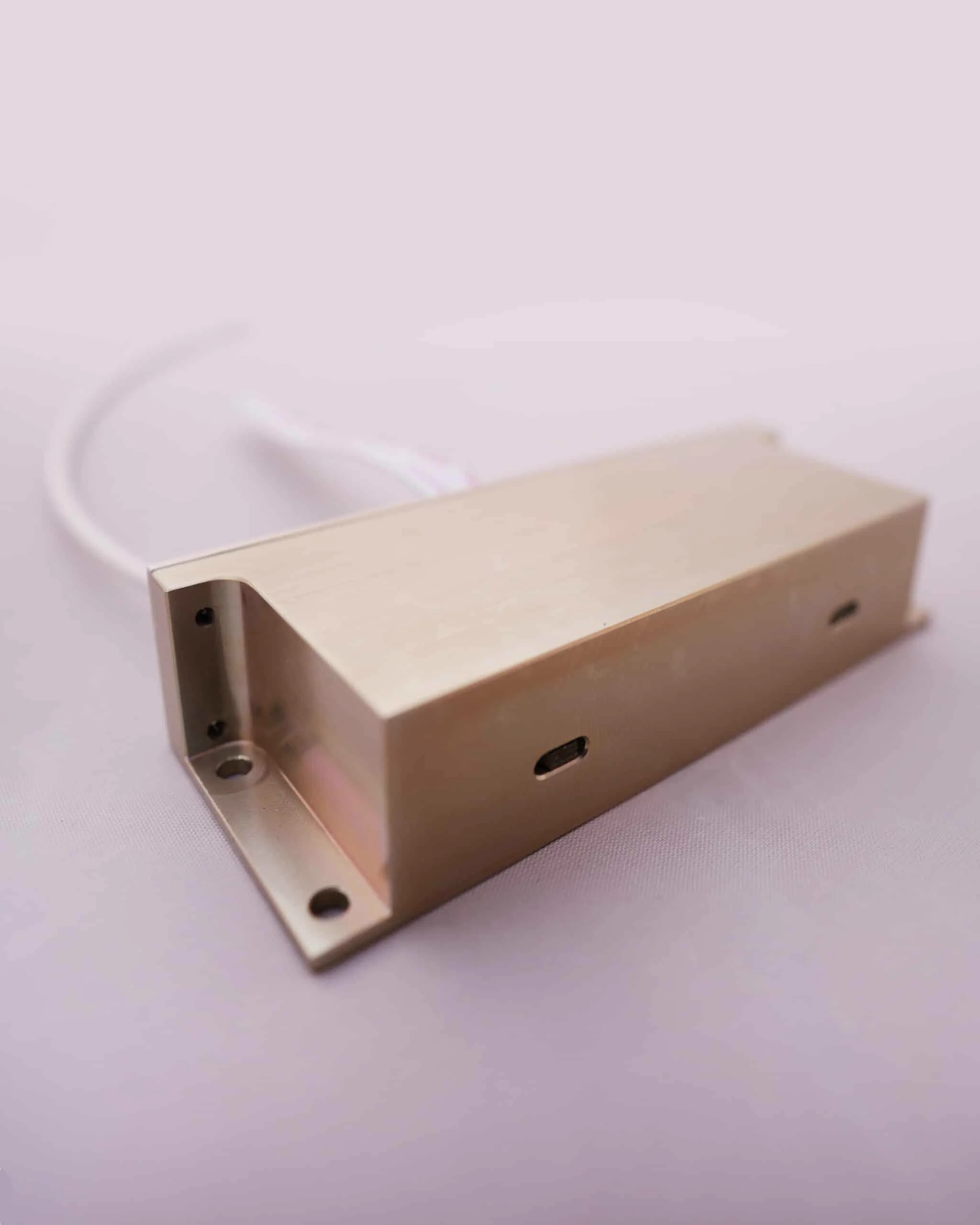

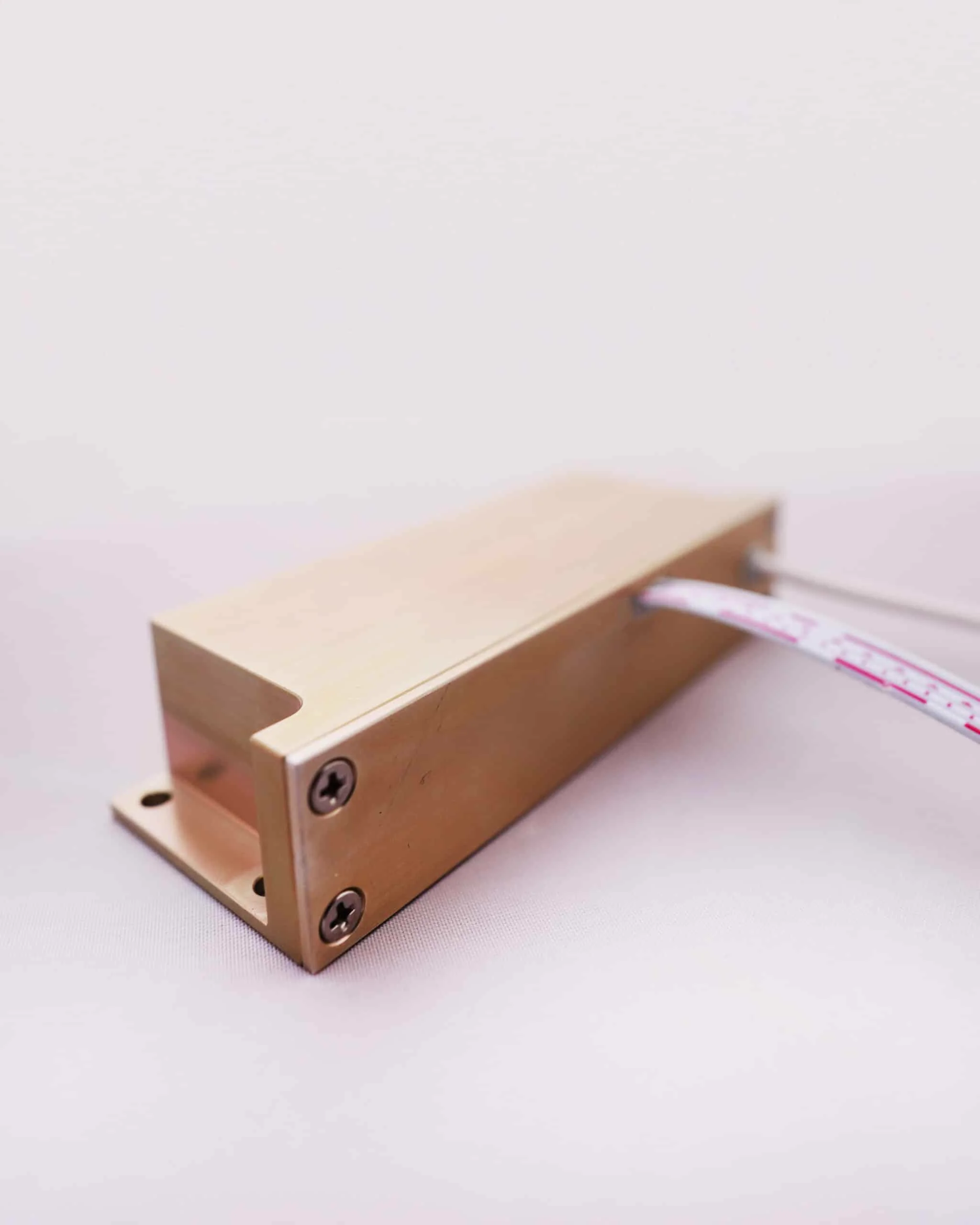

HV3 low power module — potted unit in aluminium box HV3 low power module — alternative view HV3 low power module — connector side HV3 low power module — detail HV3 low power module — top view HV3 low power module — side view

Input voltage: +12 V ±10%. Available in positive and negative configurations. Technical manuals available upon request.

ModelOutput VoltageOutput CurrentOutput RippleTechnical Manual
HV3 +150 V0 to +150 V1.2 mAmax 30 mVRequest
HV3 −150 V0 to −150 V1.2 mAmax 30 mVRequest
HV3 +200 V0 to +200 V1 mAmax 25 mVRequest
HV3 −200 V0 to −200 V1 mAmax 25 mVRequest
HV3 +1200 V0 to +1200 V500 µAtyp 15 mVRequest
HV3 −1200 V0 to −1200 V500 µAtyp 15 mVRequest
HV3 +3000 V0 to +3000 V150 µAtyp 15 mVRequest
HV3 −3000 V0 to −3000 V150 µAtyp 15 mVRequest
HV3 +3500 V0 to +3500 V50 µAtyp 15 mVRequest
HV3 −3500 V0 to −3500 V50 µAtyp 15 mVRequest

HV3 physical dimensions with potting & box

ParameterValueUnits
Length66.0mm
Width35.5mm
Height17.8mm
Weight~81g
Request a Quote

High Power Modules — up to 6000 V

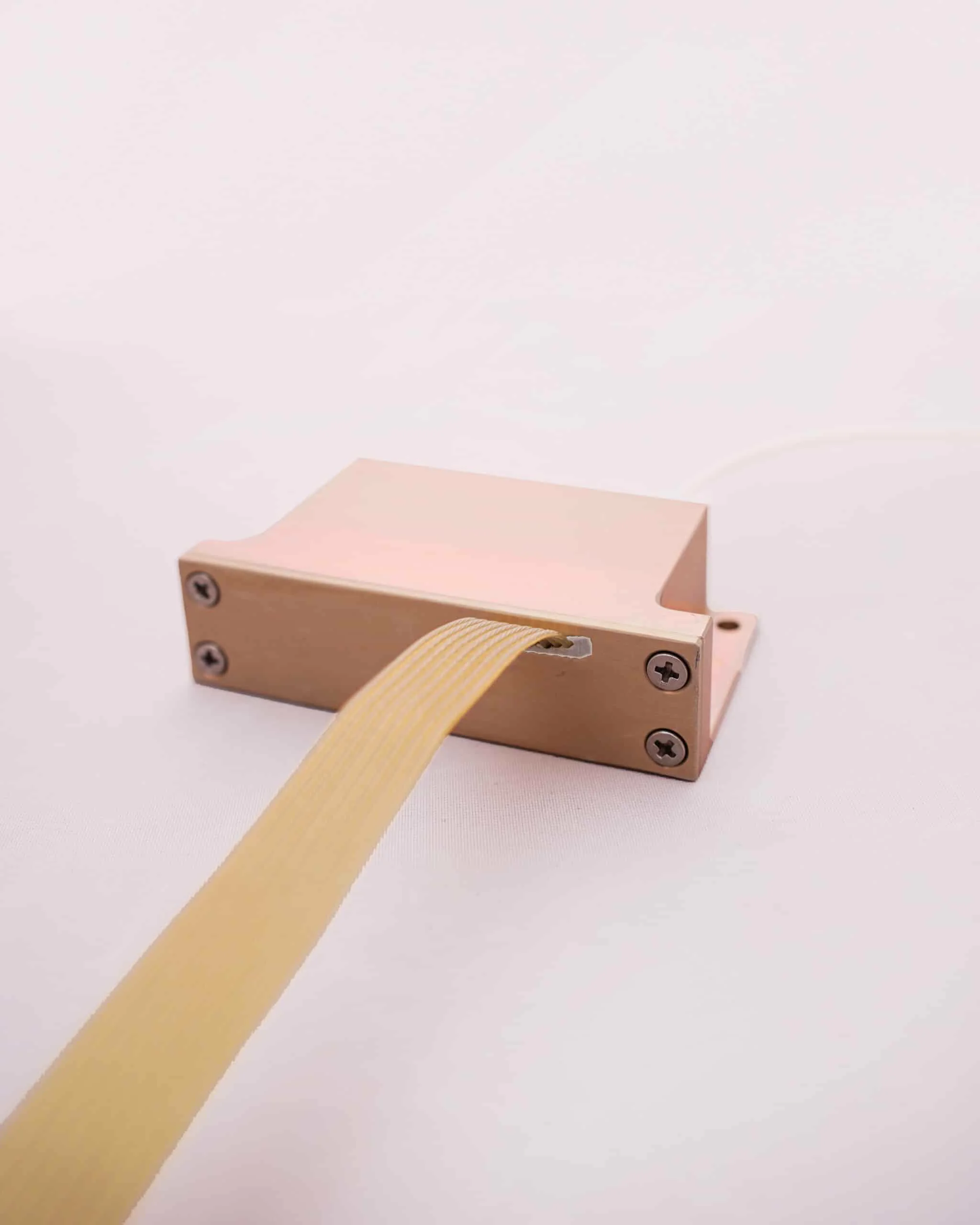

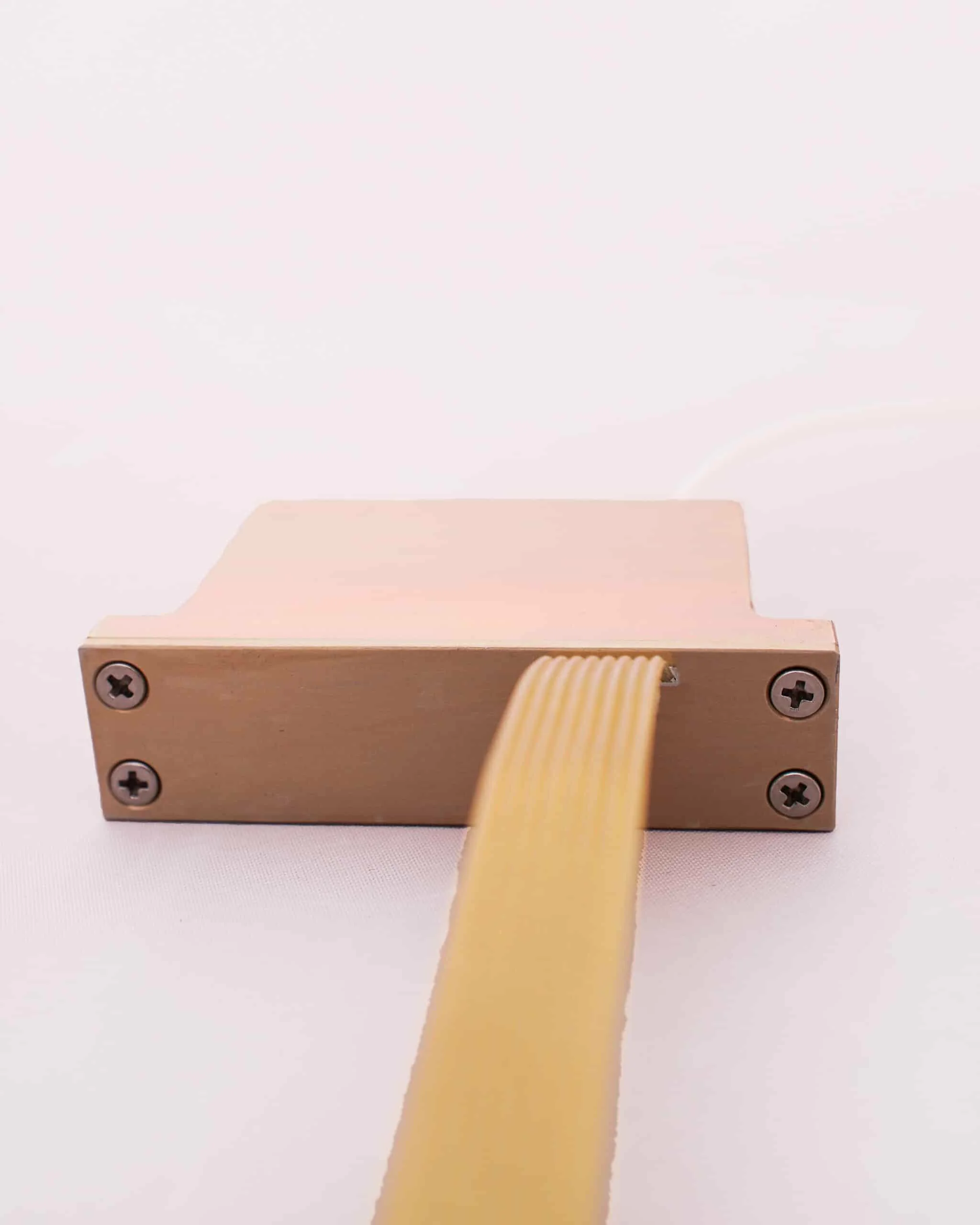

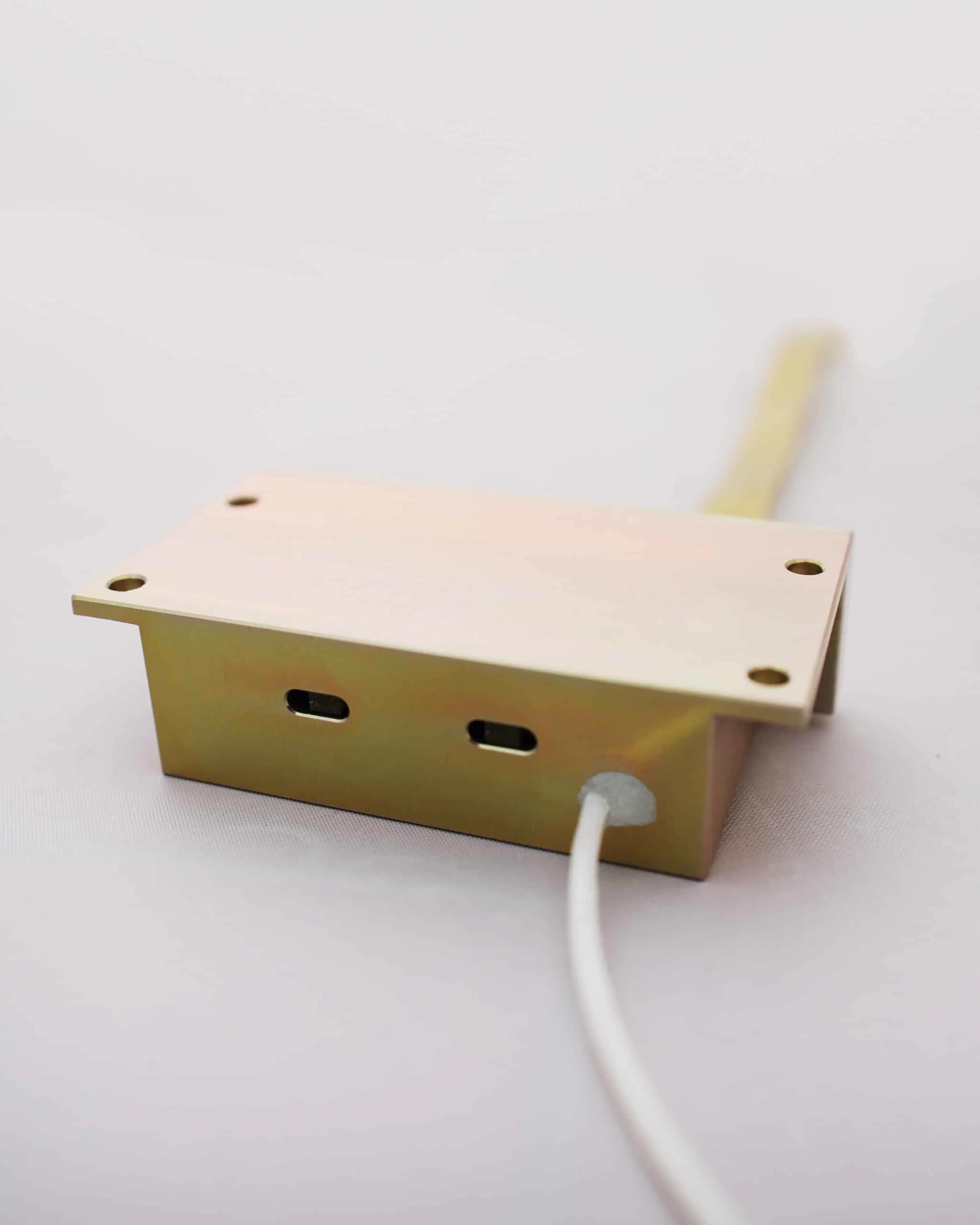

HV3 high power module — potted unit in aluminium box HV3 high power module — alternative view HV3 high power module — connector side HV3 high power module — detail HV3 high power module — top view HV3 high power module — side view

Input voltage: +12 V ±10%. Potted modules available in box configurations. Technical manuals available upon request.

ModelOutput VoltageOutput CurrentOutput RippleTechnical Manual
HV3 +6000 V0 to +6000 V1 mAmax 150 mVRequest
HV3 −6000 V0 to −6000 V1 mAmax 150 mVRequest

HV3 physical dimensions with potting & box

ParameterValueUnits
Length123.5mm
Width54mm
Height27mm
Request a Quote

Single Channel Custom Solutions

Custom aluminium housing for a single channel HV module — enclosure and cover plate

If the desired voltage or current is not present in our catalogue, we are ready to propose you a customised solution in a limited time at competitive prices.

Please specify your customisation requirement by filling the form:

Request Information
